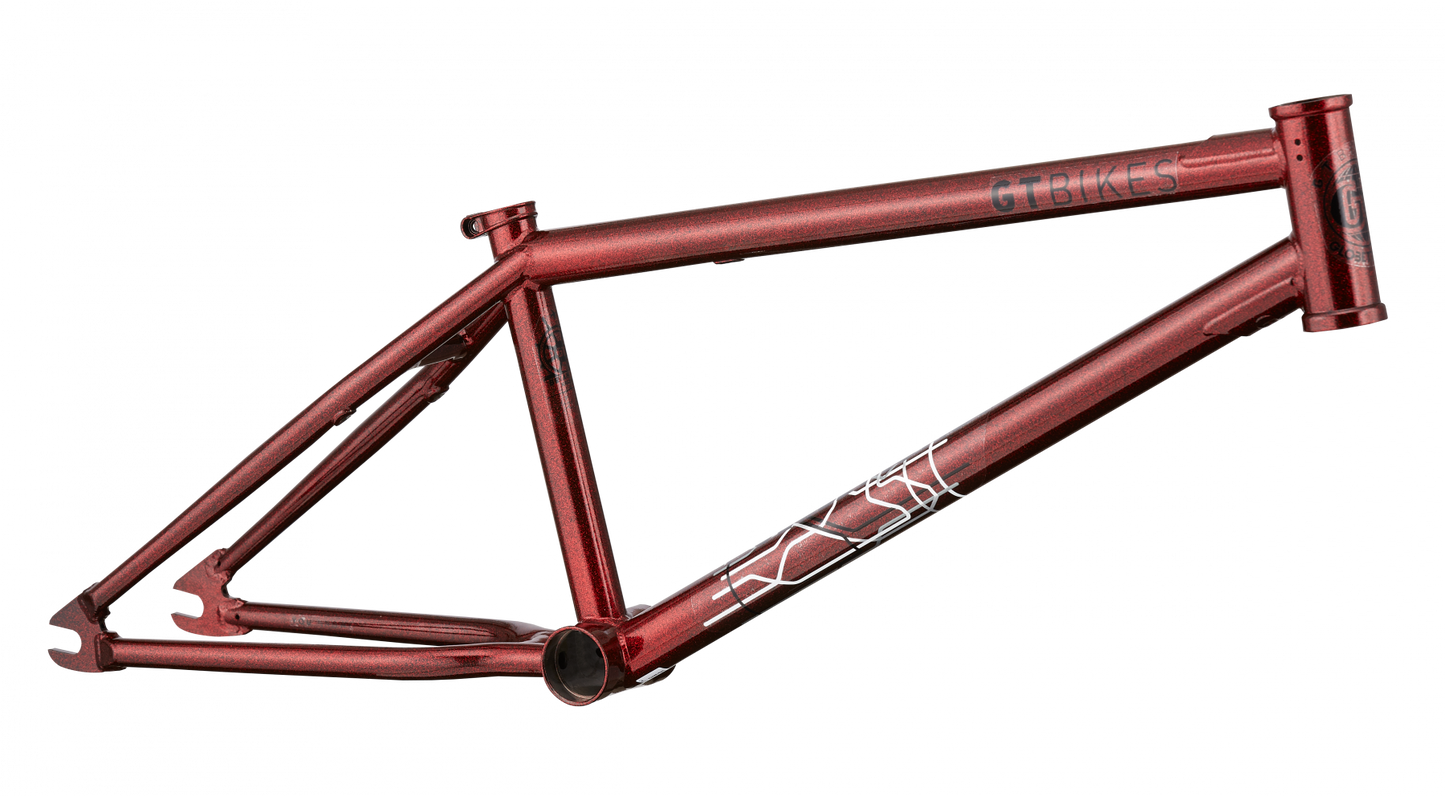

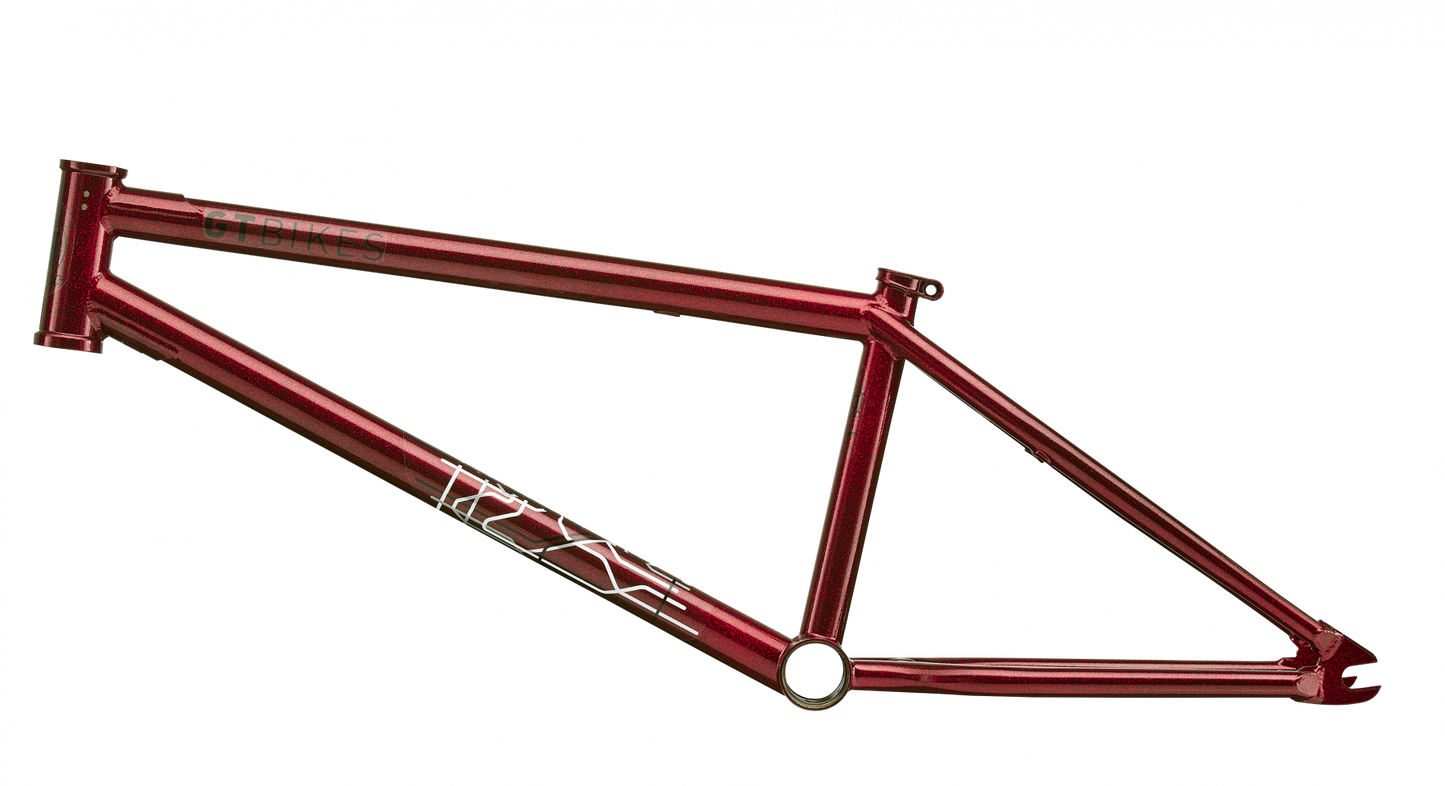

Brian Kachinsky's Signature Frame features a tech street geometry and is built to take any abuse a rider can throw it at.
Rear End Length: 13.3-13.625
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Seat Clamp: Integrated
BB Height: 11.77”
Standover: 9.1”
Head Tube: Integrated
BB: Mid
Dropouts: 14mm w/ Integrated Tensioners
Brake Mounts: Removable
Gyro Tabs: Removable
Weight: 5lbs 3.2oz (2.36kg)
- Double Gusset
- Butted Top & Seat Tube
- Straight Gauge Downtube
- Ultra-Tapered Chain & Seat Stays
- CNC Dropouts w/ Tensioner
